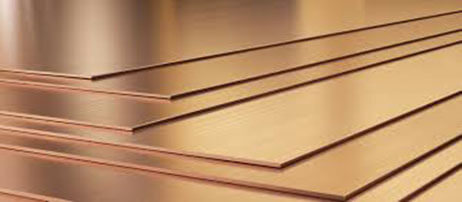

Nexim Alloys is the most dominating manufacturers, stockists, supplier & exporter of copper Sheets. These copper sheets do have its applications in furniture, electrical applications, research & development, arts & craft and more. These Sheets has its features like good mechanical properties, corrosion & abrasion resistant, easy fibre brazing & welding, good conductor of heat & electricity, long lasting strength & also features like excellent dimensional control & high crack resistance which makes these materials easy to cut, machine and otherwise form. These Sheets has its application in industries like pressure vessels, steam condensers, heat exchangers, welded tanks, ship building, oil exploration, missile components & more. The Sheets are made of best quality raw material & do match national & international quality standard & this helps us to have high demand in the market from our customers. The prices for these Sheets are completely customer friendly & market oriented. These Sheets are manufactured in different size, dimension & thickness & are delivered to customers as per their need & requirement. When it comes to packaging it is done with great care because we know the challenges faced while import & export of product hence we see through it that the product is delivered in good conditions without any damages.
Features:
Strong Corrosion Resistance
Both Electrical and Thermal Conductivity
Malleability of the metal with an Ease of Fabrication
Copper Sheet, DOW, DHP & ETP Size Range :
Standard Size Thickness
1000 × 2000 mm 1.2 mm to 16 mm
1250 × 1250 mm 1.2mm to 25 mm
1250 × 2500 mm 1.2 mm to 12 mm
2’x4’,16’’x48’’,14’’x48’’ 0.3 mm to 25 mm
Chemical Composition of Copper :
Material Normal Composition Nearest Relevant Composition Specification
Electrolytic tough Pitch H.C. Copper 99.92% Min. Cu C 101 Cu ETP 1337 H 3100 C 2100
Phosphorous Deoxidized Copper ( DONA) 99.92% Min. Cu P.0.0134-0.05 C 106 Cu DHP 1337 H 3100 C 122
Specifications
Material Tensile temper strength elongation N/mm% on 50mm Vickers Hardness Complies with or falls within ISO JIS
‘O’ 210 min 35 min 55 max
Electrolytic Tough M 210 min 35 min 65 max Cu ETP H 3100
Pitch H.C Copper ½ H 210 min 10 min 70 to 95 ISO : 1337 C 1100
H 290 min 90 Min
‘O’ 210 min 35 min 55 max
Phosphorous M 210 min 35 min 65 max Cu DHP H 3100
Deoxidised Copper ½ H 240 min 10 min 70 to 95 ISO : 1337 C 1220
H 290 min 90 Min
‘O’ : Annealed Condition
M : 1/4 Hard
1/2 : Half Hard
H : Full Hard
* : Electrical conductivity at 20°. Cel(% IACS) – 100-101 (For Cu ETP ‘O’ temper)
